For Developers


1. How to Connect to the WBCS API

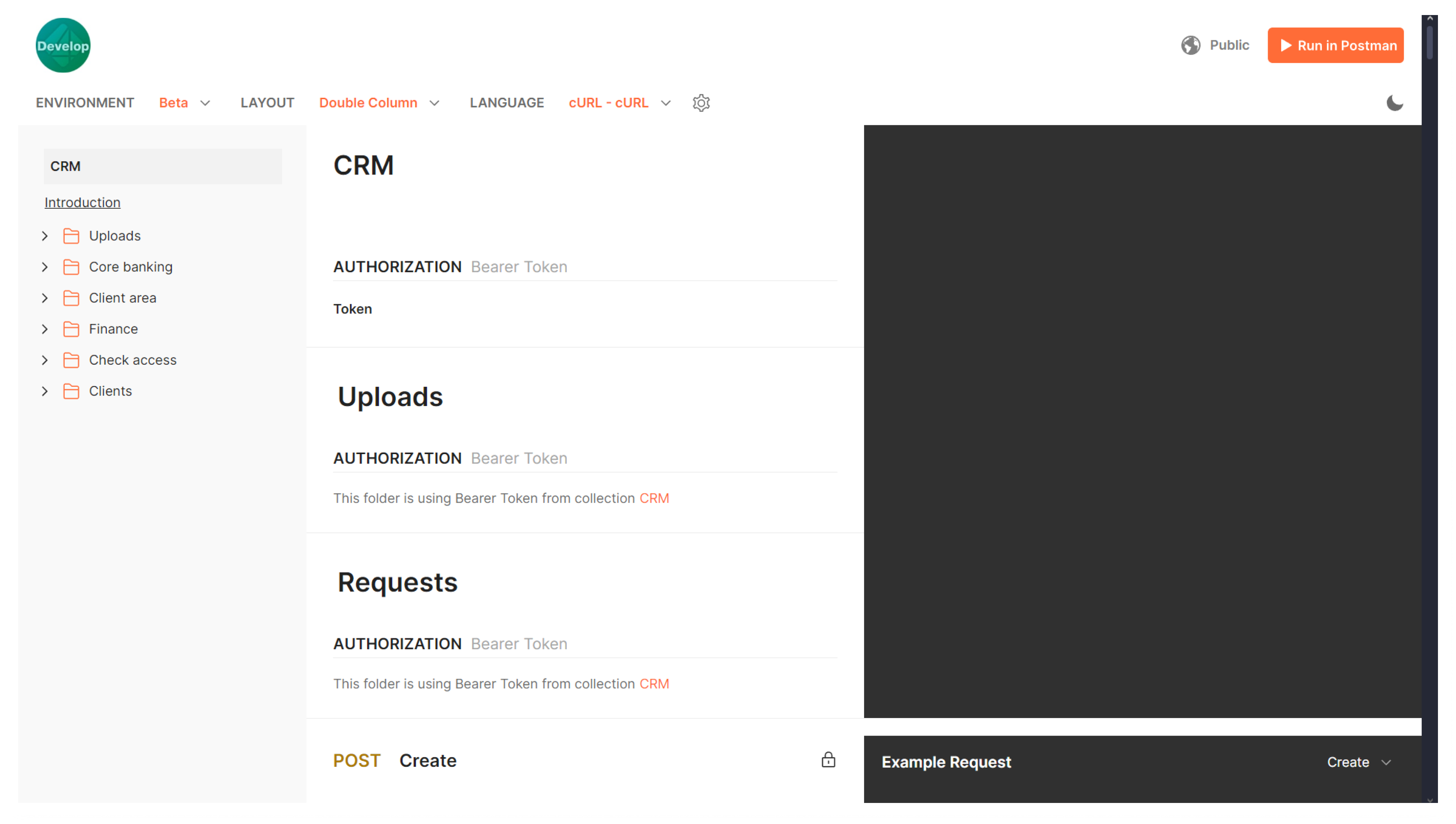

We provide documentation with examples of API requests, which can be found [here]. The requests are categorized by the modules they are used for, including working with Core Banking, Client Area, Clients, and others.


To authenticate most requests, you will need an identification token (an API authorization key for Wi CRM).

To generate an identification token:
1. Navigate to Security > Identification Tokens.
2. In the upper right corner, click the +Add button.
3. Enter a Name for the token.
4. From the drop-down list, select Role. The selected role will determine which CRM modules will be accessible when using this token. You can read more about setting up roles [here].
5. If necessary, set an expiration date for the token. If no expiration date is specified, the token will remain valid indefinitely.
6. Optionally, specify a Whitelist: a list of IP addresses for which the token will be valid. If no whitelist is provided, the token will be valid for any IP address that has the token.
7. Click on the Generate token button.

Important: The identification token is displayed only once—immediately after clicking the Generate token button. Be sure to copy and store it securely, as it cannot be viewed again. Do not share this token with anyone, and make sure you don’t lose it.

Created tokens can be modified by adding or removing IP addresses from the whitelist. Other parameters of the token cannot be edited.

Tokens can also be deleted, but once deleted, they cannot be restored.

Buckets Leads Status API

The Buckets Leads Status API allows authorized systems to retrieve lead data for a given bucket and affiliate, using emails and/or client IDs, with optional filtering, pagination, and flexible response structure.

These endpoints are read-only and implemented as POST to support bulk lookups.

📍 Base path

/api/public

🔐 Authentication

Method: Token-based via Authorization header

Authorization: <API_TOKEN>

Required permission:
👉 Buckets: View Own

If authentication fails:

401 Unauthorized
{
  "message": "Access with the provided credentials is incorrect. CODE: X-0005",
  "statusCode": 401
}

⚙️ Common behavior

📦 Endpoint: Leads by bucket & affiliate

POST /buckets/{bucketId}/{affiliateID}/leads

🧠 Description

Returns lead data for clients identified by:

Includes validation:

📌 Path parameters

📥 Request headers

📤 Request body

{
  "emails": ["user1@example.com"],
  "ids": ["69ce524d741e8f2238329fff"],
  "keyBy": "email",
  "filters": {
    "createdDate": ["1676172330450", "1776172330450"]
  },
  "limit": 100,
  "offset": 0
}

🧩 Fields

⚠️ Notes

✅ Successful response

200 OK

Response is an object keyed by email or id (based on keyBy).

{
  "user1@example.com": {
    "id": "69ce524d741e8f2238329fff",
    "email": "user1@example.com",
    "affiliateID": "1234567890",
    "status": "active",
    "createdDate": "2021-01-01T00:00:00.000Z",
    "ftd": "2021-01-01T00:00:00.000Z"
  }
}

❌ Errors

400 Bad Request

401 Unauthorized

🧩 Endpoint: Leads by bucket, affiliate & source

POST /buckets/{bucketId}/{affiliateID}/leads/{sourceId}

🧠 Description

Same as previous endpoint, with an additional source validation step.

Used for source-level access control.

📌 Path parameters

📤 Request body

Same as previous endpoint.

⚠️ Source validation behavior

✅ Successful response

Same structure as previous endpoint.

❌ Errors

400 Bad Request

All previous errors, plus:

401 Unauthorized

Same as previous endpoint.

🔧 Example requests

Without sourceId

curl -X POST "(CRM origin)/api/public/buckets/<bucketId>/<affiliateID>/leads" \
  -H "Content-Type: application/json" \
  -H "Authorization: <API_TOKEN>" \
  -d '{
    "emails": ["user1@example.com"],
    "ids": ["69ce524d741e8f2238329fff"],
    "limit": 50,
    "offset": 0
  }'

With sourceId

curl -X POST "(CRM origin)/api/public/buckets/<bucketId>/<affiliateID>/leads/<sourceId>" \
  -H "Content-Type: application/json" \
  -H "Authorization: <API_TOKEN>" \
  -d '{
    "filters": {
      "createdDate": ["1676172330450", "1776172330450"]
    }
  }'

Traders Room — Sign Up API

The Sign Up API allows external systems to register new clients in the platform.

It supports:

🎯 Use Cases

🌐 Endpoint

POST /tradersroom/api/auth/signup

🔐 Authentication

All external requests must include an API key.

Header

x-api-key: <your-api-key>

⚙️ Request Format

Headers

Header Required Value
Content-Type ✅ application/json
x-api-key ✅ Provided by platform
Origin ❌ Your domain

📥 Request Body

Required Fields

{
  "email": "user@example.com",
  "phone": "+1234567890",
  "firstName": "Jane"
}

📊 Full Field Reference

🧑 Basic Information

Field Type Required Description
email string ✅ User email
phone string ✅ Phone number
firstName string ✅ First name
middleName string ❌ Middle name
lastName string ❌ Last name
gender string ❌ Gender
dateOfBirth string ❌ Date of birth (ISO format)
nationality string ❌ Nationality
passport string ❌ Passport

📞 Contact Information

Field Type Required Description
additionalPhone string ❌ Secondary phone

📢 Affiliate & Marketing

Field Type Required Description
affiliateID string ❌ Affiliate identifier
subID string ❌ Affiliate sub-id
campaignId string ❌ Campaign identifier
sourceId string ❌ Traffic source
meta string ❌ Additional metadata
externalId string ❌ External system user ID

🏢 Business / Routing Configuration

Field Type Required Description
project string ❌ Project identifier
desk string ❌ Desk identifier
manager string ❌ Manager (id / email / name)
status string ❌ Client status
state string ❌ Client state (active, live, etc.)
type string ❌ Client type
companyFeeGroup string ❌ Fee group
processed boolean ❌ Used in custom flows

🛡️ Verification & Permissions

Field Type Required Description
verificationLevel string ❌ Verification level
verificationStatus string ❌ Verification status
allowToCreateAsset boolean ❌ Allow asset creation
agreements array ❌ Signed agreements

⚙️ Traders Room Options

Field Type Required Description
sendEmail boolean ❌ Send registration email

📦 Nested Objects

billing

{
  "billing": {
    "country": "US",
    "region": "NY",
    "city": "New York",
    "postcode": "10001",
    "address": "Wall Street 1"
  }
}
Field Type
country string
region string
city string
postcode string
address string

agreements

{
  "agreements": [
    {
      "label": "Terms and Conditions",
      "ip": "127.0.0.1",
      "signedAt": "2026-01-01T12:00:00Z"
    }
  ]
}
Field Type Description
label string Agreement name
ip string Signing IP
signedAt string ISO date

📤 Responses

✅ Success — With Autologin

{
  "id": "user-uuid",
  "url": "https://your-domain/autologin/uuid/"
}

✅ Success — Without Autologin

{
  "id": "user-uuid"
}

❌ Error Responses

400 — Invalid Request

{
  "message": "Email, phone and first name are required",
  "providerStatus": 400
}

401 — Unauthorized

{
  "message": "Invalid secret key",
  "providerStatus": 401
}

500 — Server Error

{
  "message": "Internal server error",
  "providerStatus": 500
}

📡 Example Requests

Basic Registration

curl -X POST "https://your-domain/tradersroom/api/auth/signup" \
  -H "Content-Type: application/json" \
  -H "x-api-key: YOUR_API_KEY" \
  -d '{
    "email": "user@example.com",
    "phone": "+1234567890",
    "firstName": "Jane"
  }'

Full Example

curl -X POST "https://your-domain/tradersroom/api/auth/signup" \
  -H "Content-Type: application/json" \
  -H "x-api-key: YOUR_API_KEY" \
  -d '{
    "email": "user@example.com",
    "phone": "+1234567890",
    "firstName": "Jane",
    "lastName": "Doe",
    "affiliateID": "AFF-123",
    "subID": "SUB-1",
    "campaignId": "CMP-456",
    "sourceId": "facebook_ads",
    "project": "default",
    "desk": "sales",
    "sendEmail": true
  }'

⚠️ Important Notes

  1. Collect user data

  2. Call Sign Up API

  3. Handle response:

    • If url exists → redirect user

    • Otherwise → show success message

  4. Store user ID
